HEXAR

Broad Beam ECR source for surface processing in vacuum

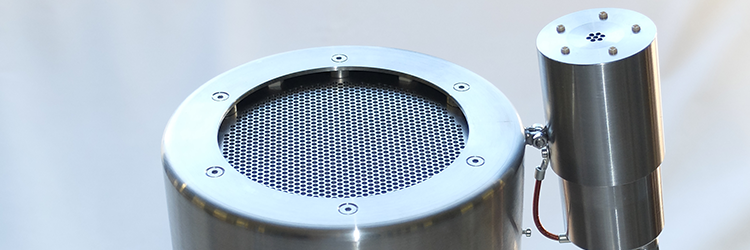

HEXAR is composed of an hexagonal arrangement of mini microwave cavities that each operate an ECR discharge at ultra low RF power (a few Watts per cavity at 2.45 GHz).

This approach is successful because of the reliability and stability of the ECR plasma, and the fact that the source has no consumables.

In addition, it enables control over the current density profile of the beam, in a way inaccessible to standard broad beam sources. The current density profile can be varied both in shape and in amplitude through the combination of gas flow, optics, and applied RF power.

HEXAR is a scalable concept that enables the fabrication of sources adapted to the treatment of a wide range of surface sizes. Typical applications are ion beam etching, surface cleaning, ion assisted deposition and ion beam sputter deposition

Specifications +

Applications	Etching, figuring, sputtering, surface activation, surface modification, cleaning, and deposition
Source type	ECR filament free
Gas	H₂, He, N₂, O₂, noble gas, molecular gas
Beam Current	Up to 40 mA (@2 kV)
Beam voltage	0.1 – 2 kV 3 grids acc/decc
Beam size at grid	80 mm
Length	110 mm
Diameter	130 mm
Microwave power	7x20 W + 1x20 W (electrons)
Microwave matching	No
Cooling	Oil or de-ionized water
Mounting	CF160 standard. Adaptable to other flanges
Electronics	19" rack 6U: Control command (inc.HF) and 8 HF generators Cooler (500 W)
Hardware control	API available via Microcontroller
Communication protocol	Ethernet UDP, RS232
User interface	GUI executable (ethernet UDP only)
Source gas control	Mass-Flow Controller (MFC)
Insertion depth	210 mm
Number of cavities	7 (+1 with neutralizer)
Options	Longer cables, and neutralizer

Applications +
- Ion beam sputter deposition

  Ion Beam Sputter Deposition (IBSD) is a physical vapor deposition (PVD) technique that consists in adding a thin film to the substrate surface to improve its material properties. Traditional challenges of IBSD such as high maintenance, high level of complexity, and difficulty to scale up are overcome thanks to CAMECA’s unique ECR technology.

  Keep Reading
- Ion implantation

  Ion implantation consists in adding ions to the interior of a substrate to change its elemental composition and improve material properties. It is commonly used for steel toughening, medical implants, and semiconductor device fabrication.

  Keep Reading
- Ion beam figuring (IBF)

  Ion Beam Figuring consists in locally sputtering atoms in order to create a surface with a specified profile. It is a used for precise figuring and finishing of optical elements, such as spheres, aspheres and free forms on lenses and mirrors. CAMECA’s ECR technology and ion optics system offer the highest flexibility in beam size, shape, and energy.

  Keep Reading
- Etching, cleaning, polishing & milling

  Sputter cleaning, ion polishing, milling and cutting are all based on Ion Beam Sputtering. They are used as a surface preparation step before depositing a thin film, before high resolution imaging or surface analysis as well as for nanostructuring a surface. CAMECA’s ECR technology delivers stable and reliable beams, eliminating the maintenance required with filament-based technologies.

  Keep Reading
- Ion assisted deposition

  Ion Assisted Deposition consists in modifing the properties of a growing thin film by directing an ion beam at it. It can also be used to purposely introduce compressive stress in the film to improve its mechanical properties. The stability and reliability of CAMECA ECR technology is attractive for ion assistance applications.

  Keep Reading
- Nuclear and atomic physics

  CAMECA high energy single cavity sources are used in various setups for nuclear and atomic physics, ranging from particle injection into electrostatic storage rings or charge boosters, to power testing of future neutron detectors.

  Keep Reading
