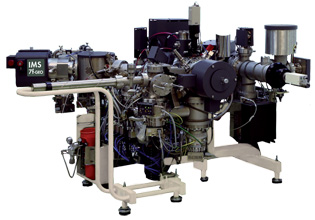

IMS 7f-GEO

Compact, High Throughput SIMS for Geoscience Laboratories

The IMS 7f-GEO is a mono-collection SIMS model specifically designed to perform high precision / high throughput measurements in geological samples, i.e. stable isotopes, REE (Rare Earth Elements), trace elements... It is also used for material sciences analyses and environmental studies.

  • Product overview +


    A unique detection system for high isotope ratio reproducibility
    Derived from our proven IMS 7f instrument, the IMS 7f-GEO is equipped with a new, unique detection system combining a double Faraday cup detector system and an Electron Multiplier. Thanks to this configuration, acquisition time is shortened, and analyses are run in a pseudo bi-collection mode ensuring sub-permil precision for stable isotope ratio measurements. The double Faraday cup system is combined with a fast mass peak switching system (as fast as 0.3 sec at high mass resolving power) for further benefits in terms of precision and analysis throughput.

    ... And greatly improved analysis throughput

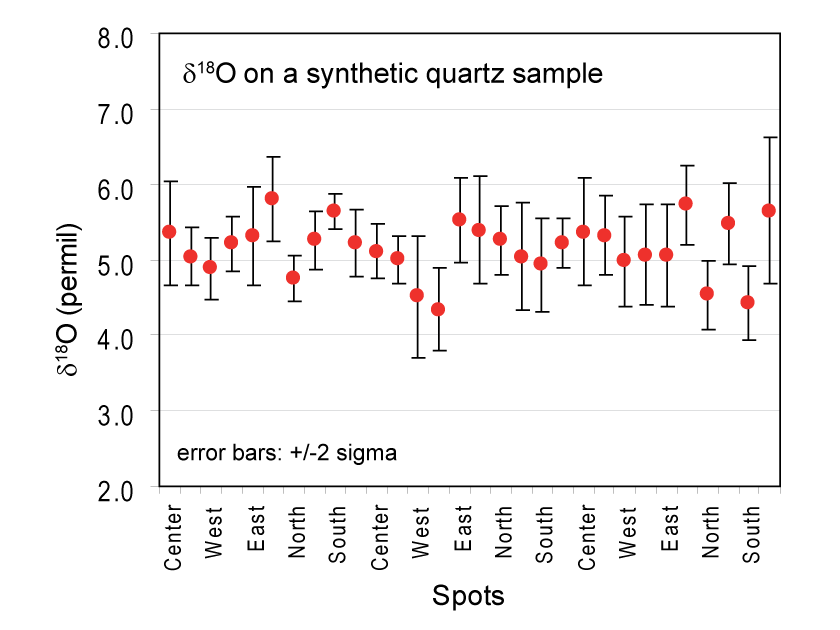

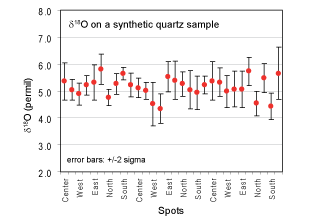

    The IMS 7f-GEO achieves a major improvement in analysis throughput thanks to the implementation of the double Faraday cup detector system as demonstrated in the  above example (top right, 18O/16O isotope ratio analysis in synthetic quartz).
    For a required statistical precision better than 0.4 permil, measurement time could be >3000 sec. while it falls down to 56 sec using the IMS 7f-GEO pseudo bi-collection mode.

  • View Webinars +

    • IMS 7f-GEO: a compact SIMS tool for stable isotope analyses

      Tuesday, May 11, 2021

      This free on-demand webinar focuses on the IMS 7f-Geo, a small-geometry versatile SIMS model designed to meet the high precision/high throughput requirements of stable isotope and trace element analysis for the geosciences community. After an introduction to the SIMS technique and a presentation of IMS 7f-GEO key instrumental features, different examples of studies based on stable isotope measurements will be presented. It also includes a short overview of the CAMECA SIMS instrument portfolio addressing geosciences applications.
      ↓ Duration : 22 minutes
      Click here to register

  • See what the IMS 7f-GEO can do for you +

  • Download documentation +

  • Scientific publications +


    An Excel spreadsheet compiling scientific research articles using the IMS xf (IMS 3f, 4f, 5f, 6f, 7f, IMS 7f-Auto, IMS 7f-GEO). The articles are ordered by main applications as below and are easily searchable with Excel word search functions:
    • Materials
    • Geosciences
    • Nuclears
    Download spreadsheet here

    Do not hesitate to contact us at cameca.info@ametek.com if you can not access some pdf files on your own. You are also more than welcome to send us any missing references, pdf and supplements!

  • Links to IMS users around the world +

    Several hundred CAMECA IMS 6f, 7f, 7f-Auto and 7f-GEO are installed worldwide, the list below is only a very short extract from our customer list!

    Nanoscale Characterization and Fabrication Laboratory, Virginia Tech, USA
    Operated by the University's Institute for Critical Technology and Applied Science (ICTAS), the Nanoscale Characterization and Fabrication Laboratory serves the needs of researchers from VirginiaTech and from the surrounding industrial community, facilitating research in nanoscale engineering and the environment, fuel cells, paleobiology... The NCFL was one the first lab in the world to be equipped with a CAMECA IMS 7f-GEO.

    CalTech Center for Microanalysis, USA
    The Center for Microanalysis at Caltech houses a IMS 7f-GEO and a NanoSIMS 50L, providing expertise for microanalysis of geological, meteoritic and synthetic materials. Research projects carried out at CCM are most varied, ranging from cosmochemistry to experimental studies on climate change, geochronology, in-situ studies of microbial communities, materials science engineering...

    Helmholtz Zentrum Dresden Rossendorf, Germany
    The CAMECA IMS series instrument in Rossendorf is coupled to an accelerator mass spectrometer at the core of the "Super-SIMS" initiative of the Helmholtz Institute Freiberg for Resource Technology.

    University of Manitoba, Manitoba Regional Materials and Surface Characterization Facility, Canada
    Equipped with a CAMECA IMS 7f and several other instruments for materials characterization, the Manitoba Regional Materials and Surface Characterization Facility provides a unique resource to regional government and industrial researchers and enables world-class research into the chemical, structural and morphological nature of surfaces and bulk materials.

    CIM PACA, Arcsis, France
    Located in the South East of France, a basin for semiconductor production, CIM PACA is the flagship characterization platform of ARCSIS, a consortium that unites world-ranking semiconductor groups including Philips, STMicroelectronics, Texas Instruments etc... as well as several dozens of small and mid-size companies, engineering schools, research laboratories and universities of the region. CIM-PACA is dedicated to the design, test and validation of new semiconductor technologies.

    CC-MEM, Institut Jean Lamour / Ecole des Mines de Nancy, France
    The Centre de Compétences en Microscopie Electronique et Microsondes (CC-MEM) is a collaborative research facility hosted by the Ecole des Mines de Nancy. The IMS 7f delivered in 2009 at CC-MEM contributes to cutting-edge research in material sciences, metallurgy, nanosciences.

    Cinvestav, Seccion de electronica del estado solido, Mexico
    Created in 1961, Cinvestav (Advanced Studies Center of the National Polytechnic Institute of Mexico) is a leader institution in research and postgraduate education in Mexico and the world

  • Software +

    • WinCurve dataprocessing sofware
      WinCurve

      Specifically developed for CAMECA SIMS instruments, WinCurve offers powerful data processing & visualization capabilities in a user-friendly environment.

      Keep Reading

    • WinImage Software
      WinImage II

      Specifically developed for CAMECA SIMS instruments, WinImage II offers powerful image visualization, processing & printing capabilities under PC-Windows™ Environment.

      Keep Reading

    • APM Software
      APM

      Automated Particle Measurement (APM) is CAMECA software tool allowing fast screening of millions of particles, particle detection and isotopic characterization.

      Keep Reading
