Faraday Cup

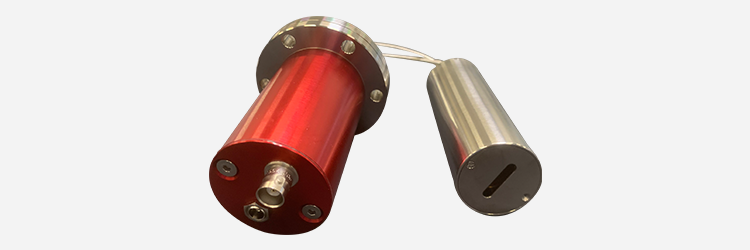

The CAMECA Faraday Cup is used to measure the ion or electron current delivered by particle sources. Mobile under vacuum via flexible connections to electronics, it enables more flexibility to suit specific applications.

The source module is delivered with:

1 BNC for measurement – compatible with control command rack for TES sources
1 power supply cable

Various apertures are available, with adaptable diameters:

Slit : up to 19mm long and 5mm wide standard
Hole : 1mm diameter
Circle : up to 18.5mm diameter

Faraday Cup’s aperture can be tailored to your specific needs.

Specifications +

Faraday Cup	Mechanical characteristics
Flange type for vacuum feedthrough	1 port CF40
Mobile under vacuum	Yes, flexible connections to electronics
Aperture range	Circular : Up to 18.5mm Slit : Up to 19mm long, 5mm wide standard Adaptable to the demand
Mass cover diameter	32 mm
Overall length	Faraday Cup (under vacuum) : 80.5mm Electronics : 100.8mm with BNC connector
Faraday Cup	Recommended use
Beam Power Rating	Up to 20W
Reading precision	0.1% of max calibration current
Calibration current	Adjustable from 0…100 nA to 0…100 mA
Input A.C. Voltage	230V
Polarisation Voltage	Up to 200V
Beam Polarity (Positive or Negative)	Both
Electrical connection	1 BNC for measurement (supplied) – compatible with control command rack for TES sources 1 power supply cable (supplied)
Cooling	None

Applications +
- Ion beam sputter deposition

  Ion Beam Sputter Deposition (IBSD) is a physical vapor deposition (PVD) technique that consists in adding a thin film to the substrate surface to improve its material properties. Traditional challenges of IBSD such as high maintenance, high level of complexity, and difficulty to scale up are overcome thanks to CAMECA’s unique ECR technology.

  Keep Reading
- Ion implantation

  Ion implantation consists in adding ions to the interior of a substrate to change its elemental composition and improve material properties. It is commonly used for steel toughening, medical implants, and semiconductor device fabrication.

  Keep Reading
- Ion beam figuring (IBF)

  Ion Beam Figuring consists in locally sputtering atoms in order to create a surface with a specified profile. It is a used for precise figuring and finishing of optical elements, such as spheres, aspheres and free forms on lenses and mirrors. CAMECA’s ECR technology and ion optics system offer the highest flexibility in beam size, shape, and energy.

  Keep Reading
- Etching, cleaning, polishing & milling

  Sputter cleaning, ion polishing, milling and cutting are all based on Ion Beam Sputtering. They are used as a surface preparation step before depositing a thin film, before high resolution imaging or surface analysis as well as for nanostructuring a surface. CAMECA’s ECR technology delivers stable and reliable beams, eliminating the maintenance required with filament-based technologies.

  Keep Reading
- Ion assisted deposition

  Ion Assisted Deposition consists in modifing the properties of a growing thin film by directing an ion beam at it. It can also be used to purposely introduce compressive stress in the film to improve its mechanical properties. The stability and reliability of CAMECA ECR technology is attractive for ion assistance applications.

  Keep Reading
- Nuclear and atomic physics

  CAMECA high energy single cavity sources are used in various setups for nuclear and atomic physics, ranging from particle injection into electrostatic storage rings or charge boosters, to power testing of future neutron detectors.

  Keep Reading
